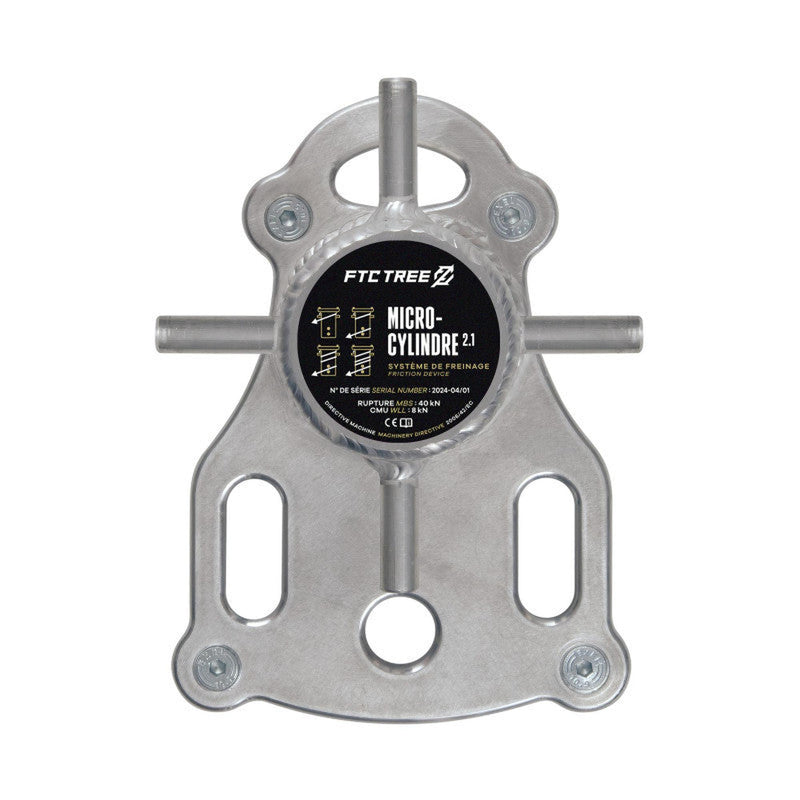

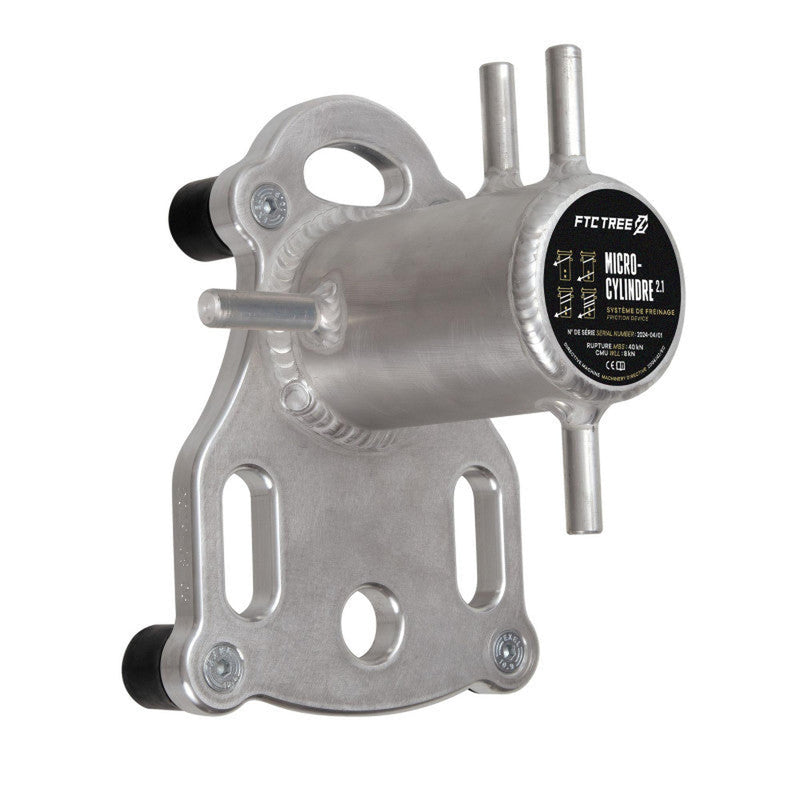

FTC MICRO-CYLINDRE 2.1 Lowering Device

FTC MICRO-CYLINDRE 2.1 Lowering Device

The FTC MICRO-CYLINDRE 2.1 Lowering Device is a compact friction device designed for controlled lowering and holding of branches or small logs during tree care and minor felling operations. Developed as a lightweight yet robust rigging solution, it is intended for professional arborists who require reliable rope control without excessive bulk. Supplied ready to install, the Micro-Cylindre 2.1 integrates easily into existing FTC lowering setups and is delivered complete in its transport box.

Compact friction system for controlled lowering

The Micro-Cylindre 2.1 functions as a rope friction device used to manage loads during dismantling work. Its design supports smooth holding and lowering of cut material while maintaining predictable rope behaviour. With a maximum approved rope diameter of 14 mm, it suits common rigging ropes used in tree care. The round ring at the top allows for reeving, and two fairleads at the end of the cylinder keep rope wraps correctly positioned and prevent overlapping during operation.

Lightweight aluminium construction with balanced handling

Manufactured entirely from aluminium, the Micro-Cylindre 2.1 is designed not to heat up excessively during use, helping protect rigging ropes from heat damage. Rubber bumpers help keep the device stable when mounted on the tree. The symmetrical layout allows the ground worker to operate comfortably from either the left or right side, supporting flexible site positioning. With a device weight of 1.7 kg, it offers a favourable balance between portability and strength.

Strength ratings and supplied components

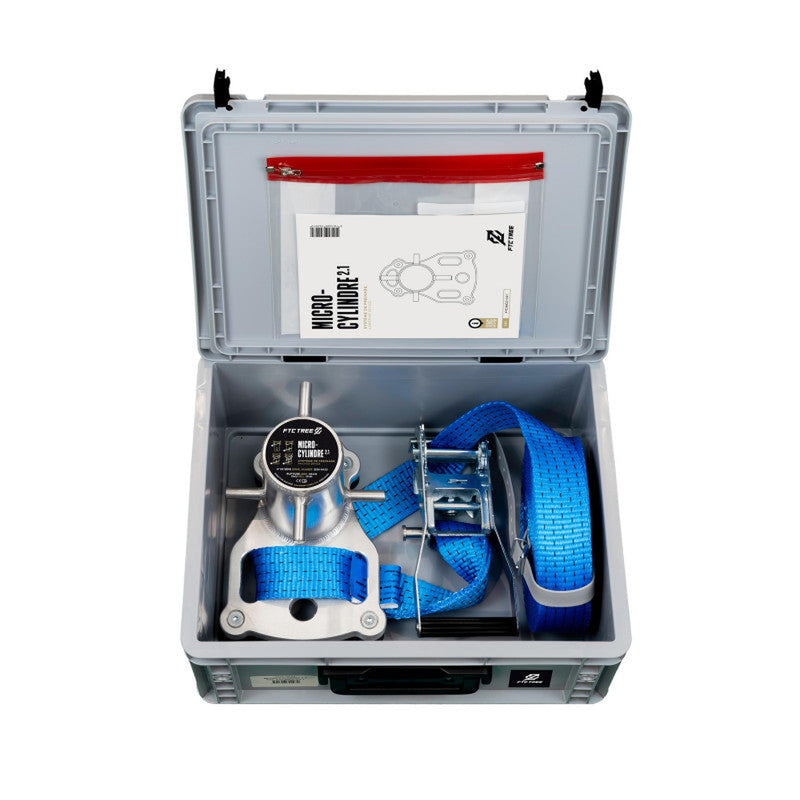

The Micro-Cylindre 2.1 has a minimum breaking strength of 40 kN and a stated working load limit of 8 kN, delivering a strong performance margin for its size. The plate measures 225 mm in height, up to 165 mm in width, and 15 mm in thickness, with a cylinder diameter of 75 mm. It is supplied with 9 m straps suitable for trees up to 2 m in diameter, and a transport box measuring 30 cm by 40 cm with a height of 19.5 cm. Total weight including strap and box is 4.9 kg. The device complies with Machinery Directive 2006/42/CE.

Key Features

• Compact friction device for lowering and holding rigging ropes
• Designed for minor felling and controlled branch or log lowering
• Entirely aluminium construction to limit rope heating
• Rubber bumpers for added stability on the tree
• Top ring allows rope reeving
• Two fairleads keep rope wraps aligned and prevent overlap
• Symmetrical design allows left or right ground operation
• Maximum rope diameter of 14 mm
• 40 kN minimum breaking strength with 8 kN working load limit
• Supplied ready to install with straps and transport box
