Stein Modular Stump Grinder Guarding System

Stein Modular Stump Grinder Guarding System

The Stein Modular Stump Grinder Guarding System is designed to help reduce the risk of flying debris during stump grinding operations. It provides a configurable guarding solution that allows operators to establish a clearly defined and controlled working area on site. By forming a physical barrier around the grinding zone, the system supports safer site management while maintaining visibility and practical access during active work.

Modular guarding for adaptable site layouts

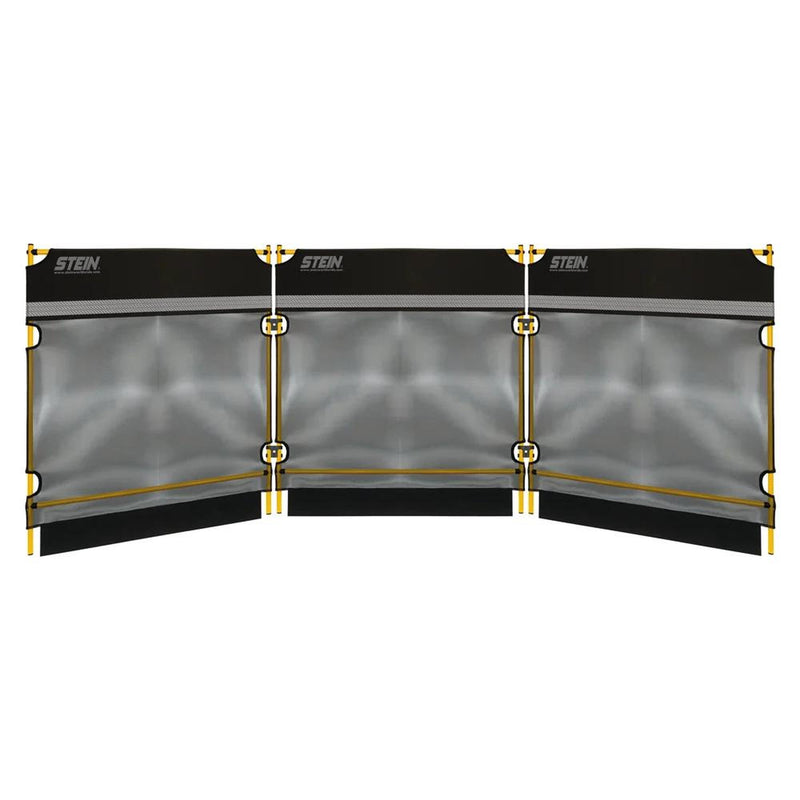

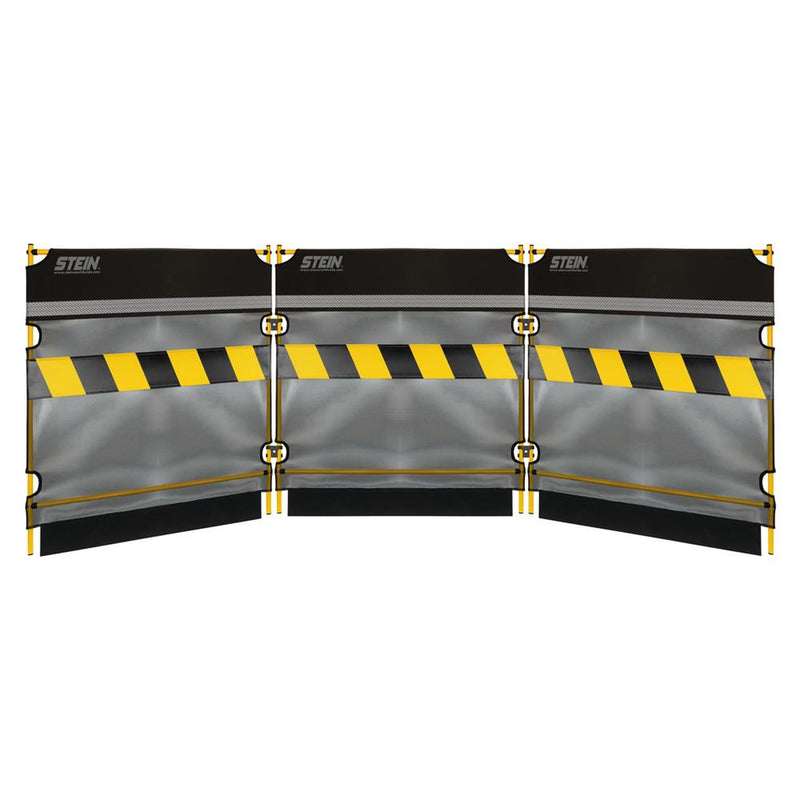

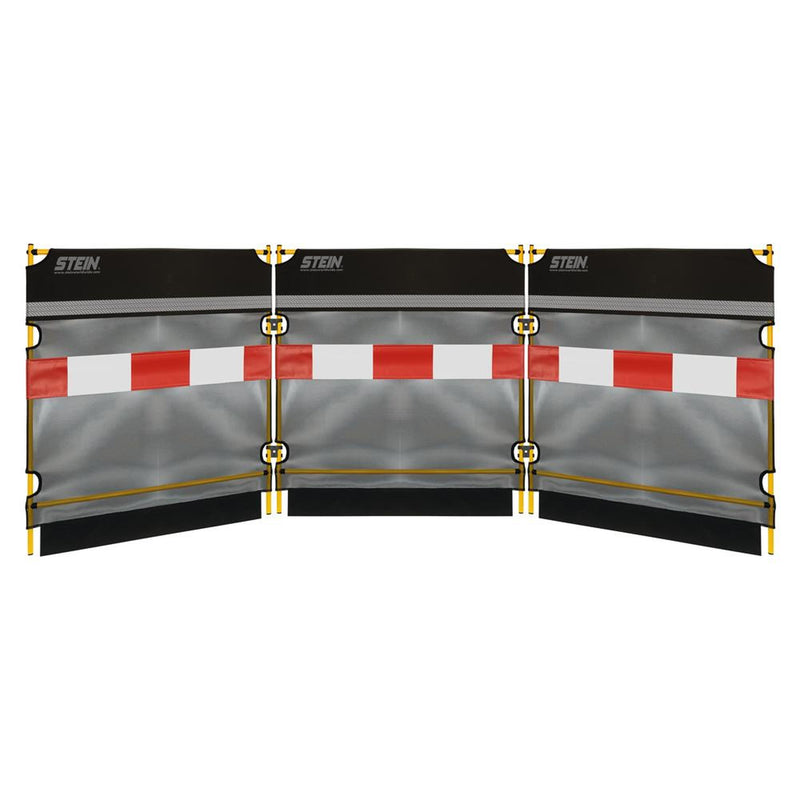

This guarding system is made up of three individual panels that can be arranged to suit different site conditions. Panels can be added, removed, or repositioned as needed, allowing operators to adapt the guarded area around stumps, obstacles, or access routes. This flexibility supports effective risk management across a wide range of working environments without relying on fixed barriers.

Fast setup with tool-free connections

Panels are connected using quick-release hinge clips, allowing the system to be assembled, adjusted, or dismantled without tools. This supports fast deployment on site and reduces setup time before work begins. Secure connections help keep the system stable during operation while still allowing quick breakdown for transport or storage when work is complete.

Durable construction with clear visual boundaries

Each panel is built around a frame made from 20 mm steel tube and finished with a powder-coated surface to support durability during repeated outdoor use. Double-layered close-knit mesh helps contain debris while maintaining visibility into the working area. High-visibility reflective stripes fitted to each panel help clearly define the guarded zone, particularly on busy sites or in reduced light conditions.

Key Features

• Modular guarding system consisting of three individual panels
• Total system length of approximately 3.20 m when assembled

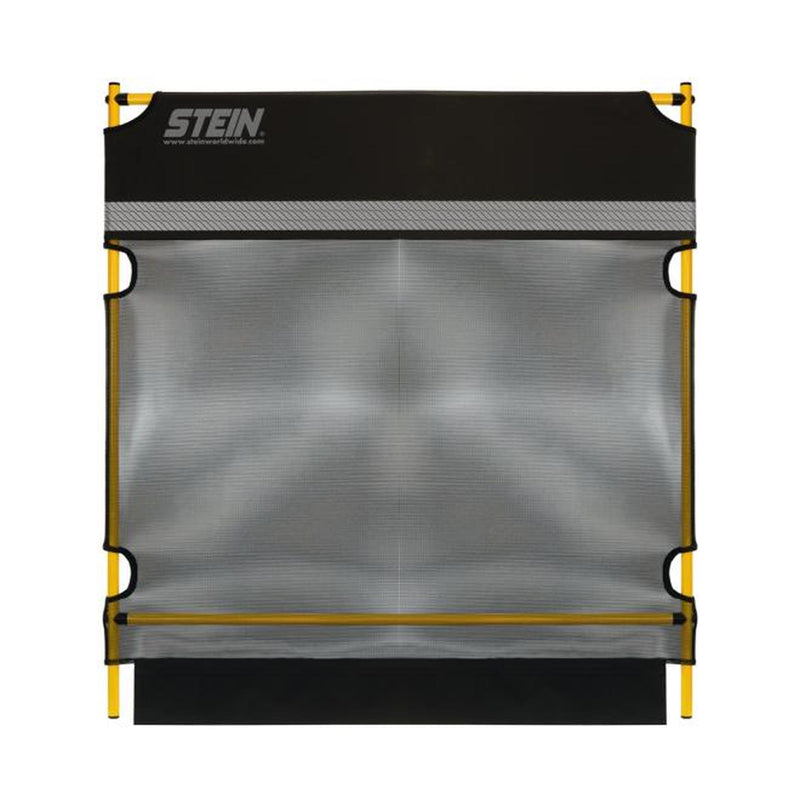

• Individual panel size of 115 cm high and 105 cm wide
• Panel weight of 4.8 kg each for manageable handling
• Total system weight of 15.0 kg including clips

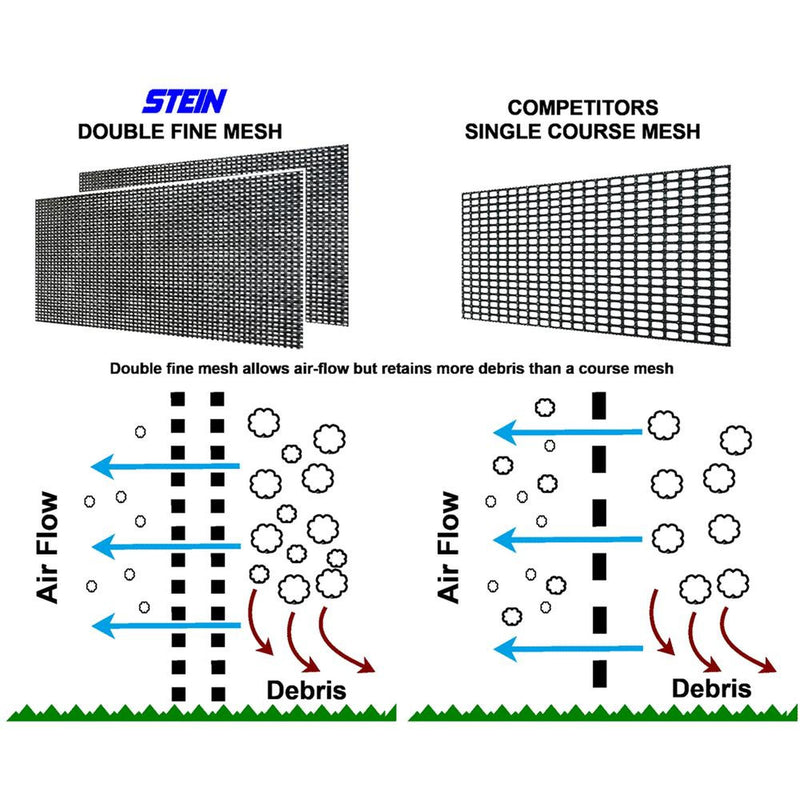

• Double-layered close-knit mesh to help contain flying debris
• Quick-release hinge clips allowing tool-free assembly
• Finish: powder coated
• Fixings: M10 coated hex screws
