DMM Rigging Hub - Small

DMM Rigging Hub - Small

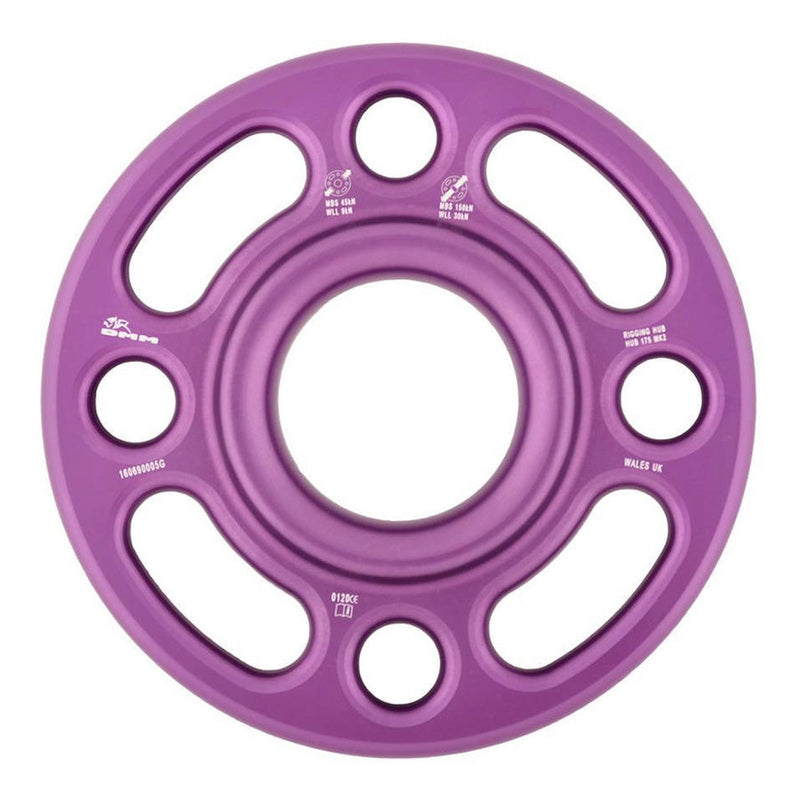

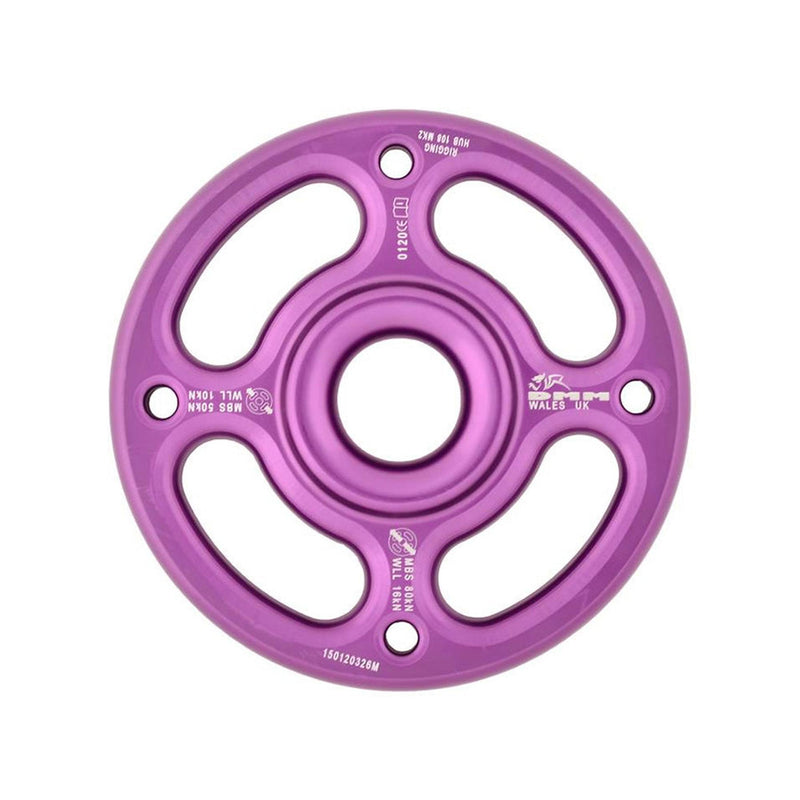

The DMM Rigging Hub - Small is designed to bring complex three dimensional rigging into a single, organised anchor point. Developed for use in tree work, rope access, and rescue environments, it provides a compact yet highly capable solution where multiple connections must be managed efficiently. By centralising loads, the hub helps simplify rigging layouts while supporting controlled and predictable system behaviour.

Central anchor point for three dimensional rigging

The small rigging hub allows multiple anchors to be combined into one strong focal point, supporting three dimensional rigging configurations. The central hole can accommodate a running rope, enabling loads to be directed across different planes as required. When used in multiples, hubs can also act as a lightweight alternative to a tripod, supporting edge management or targeted lifting where space or access is limited.

Textile friendly connections for flexible setups

All connection points on the DMM Rigging Hub - Small feature radiused surfaces that are suitable for direct attachment of ropes and textile components. This includes running ropes, girth hitched slings, tied prusiks, and opposed connectors. The textile friendly design supports versatile rigging options while helping to reduce wear on ropes and webbing during use.

Compact alloy construction for demanding environments

CNC machined from top grade alloy, the small rigging hub is built to balance strength, durability, and reduced weight. It offers a maximum breaking strength of 80 kN on the main axis and 45 kN on secondary orientations, with working load limits of 16 kN and 9 kN. Measuring 119 mm and weighing 260 g, it is well suited to professional rigging and rescue applications where compact size and reliable performance are required. The hub conforms to NFPA 1983 General Use and meets RFU 11.114 V1 requirements.

Key Features

• Compact rigging hub for centralised three dimensional anchor systems
• Textile friendly radiused connection points for rope and webbing
• Central hole supports running ropes and complex rigging layouts
• CNC machined alloy construction for strength and durability
• 80 kN maximum breaking strength with 16 kN working load limit
• Certification - RFU 11.114 V1
