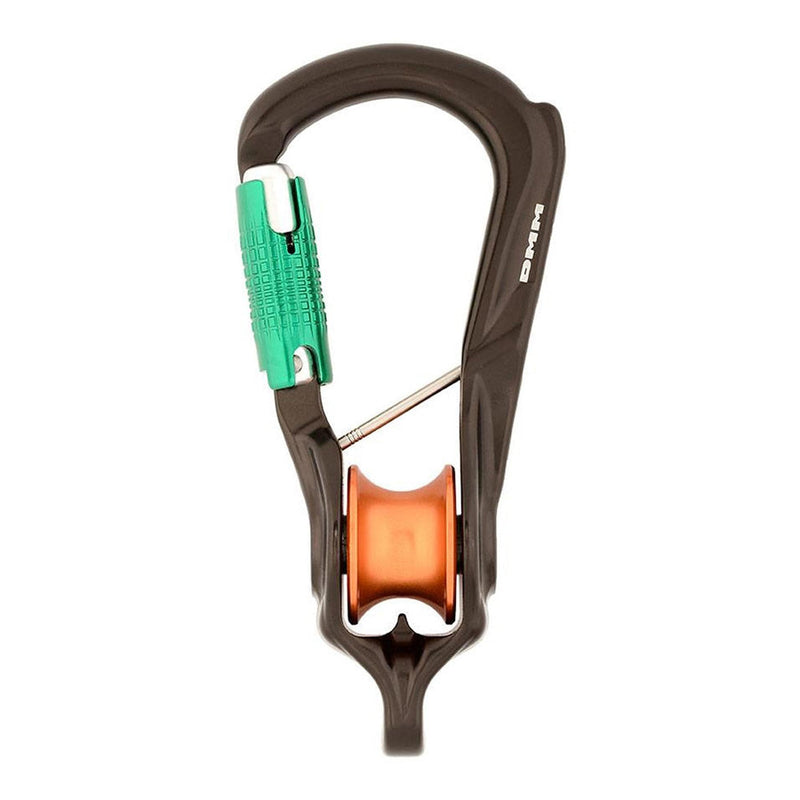

DMM Revolver Rig 3 Way Locksafe Carabiner - Titanium / Green

DMM Revolver Rig 3 Way Locksafe Carabiner - Titanium / Green

The DMM Revolver Rig 3 Way Locksafe Carabiner is a professional connector with an integrated pulley sheave, developed for efficient rope management in rigging, rescue, and work positioning systems. Designed to reduce friction and maintain correct orientation under load, it combines a compact pulley with a robust carabiner body. The result is a versatile solution where smooth rope travel, controlled alignment, and secure connections are required.

Integrated pulley for reduced friction and efficiency

The Revolver Rig incorporates a high efficiency roller bearing sheave that allows ropes to run with reduced resistance. A large 36 mm sheave diameter provides a generous bend radius, helping improve efficiency when managing loads or redirects. This design supports smoother rope movement compared to running directly over a standard connector, making it well suited to professional rigging and hauling tasks.

Orientation control and textile friendly connections

A uniquely profiled spine and threaded removable captive bar help maintain correct orientation during use, reducing the likelihood of rotation within the system. The full strength textile friendly becket allows direct rope or sling attachment and can also accept most karabiners. When a connector is attached to the becket, the design helps minimise friction between rope and connector, supporting cleaner and more predictable system behaviour.

Locksafe gate with robust construction

The 3 Way Locksafe gate requires three distinct actions to open, helping reduce the risk of accidental gate opening during professional use. A 22 mm gate opening allows practical clipping of equipment, while the keylock nose design supports snag free handling. Measuring 75 x 161 mm and weighing 203 g, the Revolver Rig offers a major axis strength of 25 kN and a working load limit of 5 kN. It conforms to EN 362:2004 B/T and EN 12278:2007 standards.

Key Features

• Professional carabiner with integrated pulley for efficient rope handling
• High efficiency roller bearing sheave for reduced friction under load
• Large 36 mm sheave diameter supporting a generous rope bend radius
• Full strength textile friendly becket for direct rope or sling attachment
• Threaded removable captive bar to help maintain correct orientation
• Uniquely profiled spine supporting predictable alignment in use
• 3 way Locksafe auto locking gate requiring three actions to open
• 22 mm gate opening allowing practical clipping of equipment
• Keylock nose design for smooth snag free operation
• 25 kN major axis strength with 5 kN working load limit
• Certified to EN362:2004 B/T and EN12278:2007 standards
