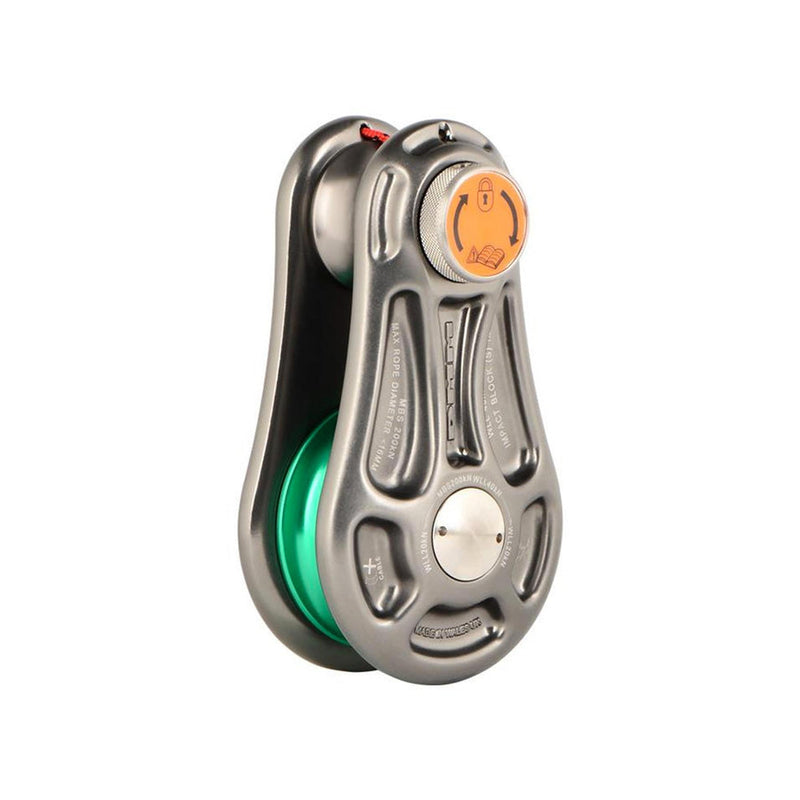

DMM 16mm Small Impact Rigging Pulley Block

DMM 16mm Small Impact Rigging Pulley Block

The DMM 16mm Small Impact Rigging Pulley Block is engineered for professional rigging applications where loads may be dropped onto the system with significant impact forces. Designed for demanding arborist, rescue, and industrial environments, it combines advanced manufacturing with high-quality materials to deliver exceptional strength, durability, and rope-friendly performance. Lightweight for its capacity yet uncompromising in strength, this block is built to perform reliably during repeated high-load and dynamic rigging tasks.

Designed to manage high impact loads

This rigging block is purpose-built for scenarios involving dynamic loading, including winching, negative rigging, and heavy redirects. With a minimum breaking strength of 200 kN and a working load limit of 40 kN, it offers a substantial safety margin for complex rigging operations. The block supports rigging lines up to 16 mm in diameter, allowing it to integrate seamlessly into professional systems where strength and control are essential.

Efficient rope handling and durability

The sheave and side plate geometry are engineered to maintain smooth rope travel under load, helping reduce friction and wear during operation. The sheave colouring follows the EU working load limit protocol, supporting clear visual identification on site. Built to withstand long-term use, the block has passed extensive dynamic, torsion, and static testing, demonstrating a strong strength-to-weight ratio despite its compact 1.86 kg mass.

Certified performance for professional use

With overall dimensions of 180 x 100 x 70 mm, the block balances robust construction with manageable size for handling and installation. It conforms to EN 12278:2007 and NFPA 1983 (2012 Edition) Class G, supporting use in regulated professional environments. This certification, combined with proven durability, makes the block suitable for operators who require dependable performance in the toughest working conditions.

Key Features

• Supports rigging lines up to 16 mm for heavy-duty applications
• 200 kN minimum breaking strength with a 40 kN working load limit
• Designed for high impact and dynamic rigging scenarios
• Sheave colouring follows EU working load limit protocol
• Certified to EN 12278:2007 and NFPA 1983 Class G standards
• Robust 1.86 kg construction with dimensions of 180 x 100 x 70 mm
