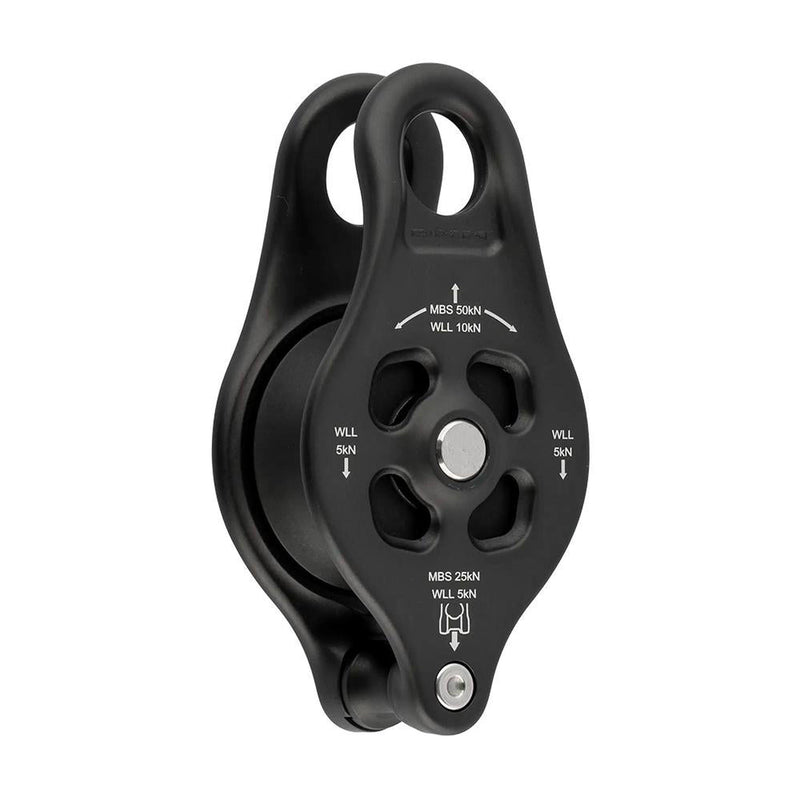

DMM 16mm Pinto Rig 2 Pulley - Matt Grey

DMM 16mm Pinto Rig 2 Pulley - Matt Grey

The DMM 16mm Pinto Rig 2 Pulley in matt grey is a compact yet high-capacity pulley designed for professional arborist rigging and demanding rope management tasks. As the larger and stronger evolution of the original Pinto design, the Rig 2 retains the familiar smooth profile while introducing a significantly larger sheave and higher load ratings. This makes it particularly well suited to rigging scenarios where efficiency, strength, and controlled rope handling are essential.

Designed for higher load rigging applications

The Pinto Rig 2 features a 38 mm sheave that accommodates ropes up to 16 mm in diameter, allowing it to operate efficiently with thicker rigging lines and taglines. This increased sheave size improves rope bend radius and overall efficiency when managing heavier loads. With a maximum breaking strength of 50 kN and a 25 kN rating at the becket, the pulley supports demanding rigging configurations where reliability and predictable performance are required.

Smooth rope handling from any angle

A recessed sheave design creates a smooth and uninterrupted rope channel, ensuring the rope always sits correctly on the sheave even when feeding from awkward or off-axis angles. This reduces the risk of snagging and uneven loading, supporting safer and more controlled operation during lowering, hauling, or redirection tasks. Sealed ball bearings further enhance efficiency, delivering smooth rotation with low maintenance requirements across repeated professional use.

Robust construction with versatile attachment options

The Pinto Rig 2 is hot forged for strength and durability, with carefully finished edges that are friendly to ropes and textile connectors. Full strength attachment points at both the main eye and the becket provide flexibility when configuring rigging systems, while the fixed side plate design allows easy clipping onto tensioned ropes. With overall dimensions of 115 x 60 x 37 mm and a weight of 222 g, it balances compact handling with the strength needed for rigging-focused applications.

Key Features

• 38 mm sheave designed for use with ropes up to 16 mm
• High strength construction with 50 kN maximum breaking load
• 25 kN becket rating supporting flexible rigging options
• Sealed ball bearings for smooth and efficient rotation
• Recessed sheave for clean rope feed from all angles
• Hot forged body with textile friendly edges
