At Height DW3 Drill Winch Pro Powered Ascender

At Height DW3 Drill Winch Pro Powered Ascender

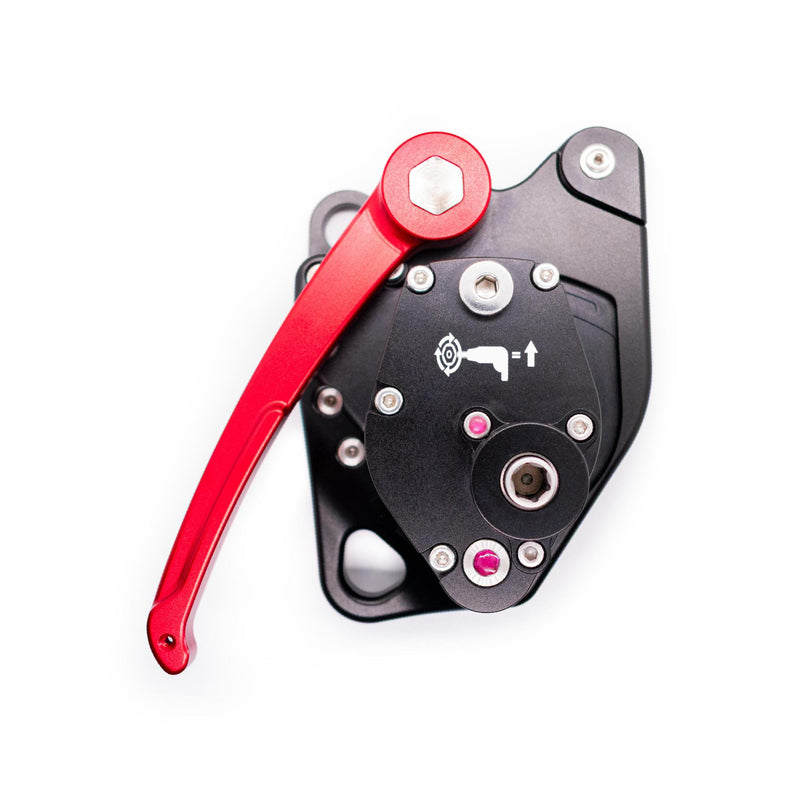

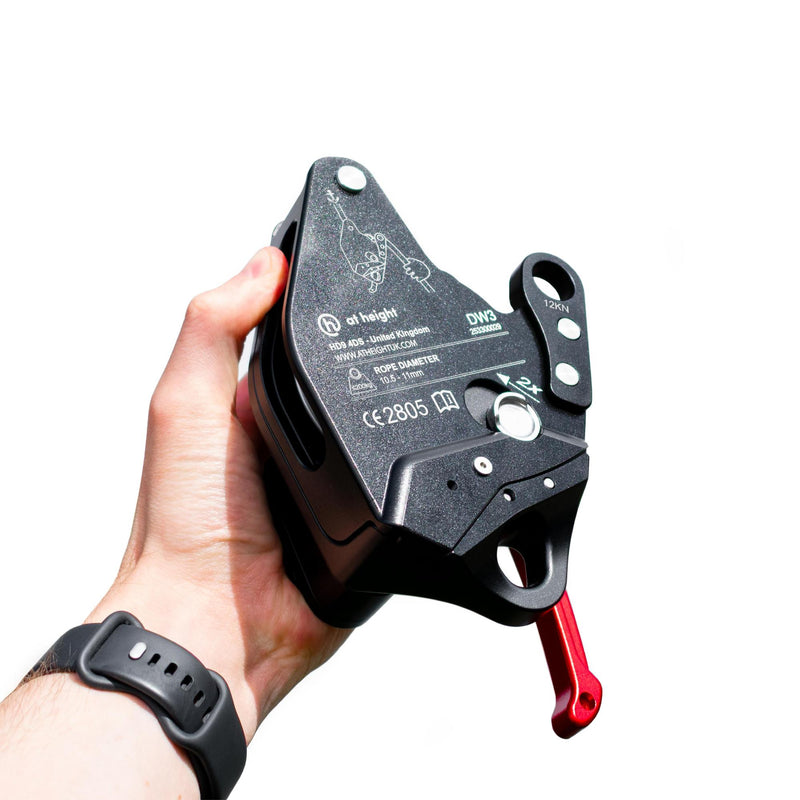

The At Height DW3 Drill Winch Pro Powered Ascender is a compact, drill-powered device designed for lifting and lowering people and materials in a wide range of professional applications. Developed for arborists, rescue teams and technical rigging operations, it provides controlled movement using a high torque drill for lifting and a lever handle for smooth, controlled descent. Its lightweight 1.5 kg construction and compact size make it easy to transport and deploy in demanding environments.

Efficient Drill-Powered Lifting Performance

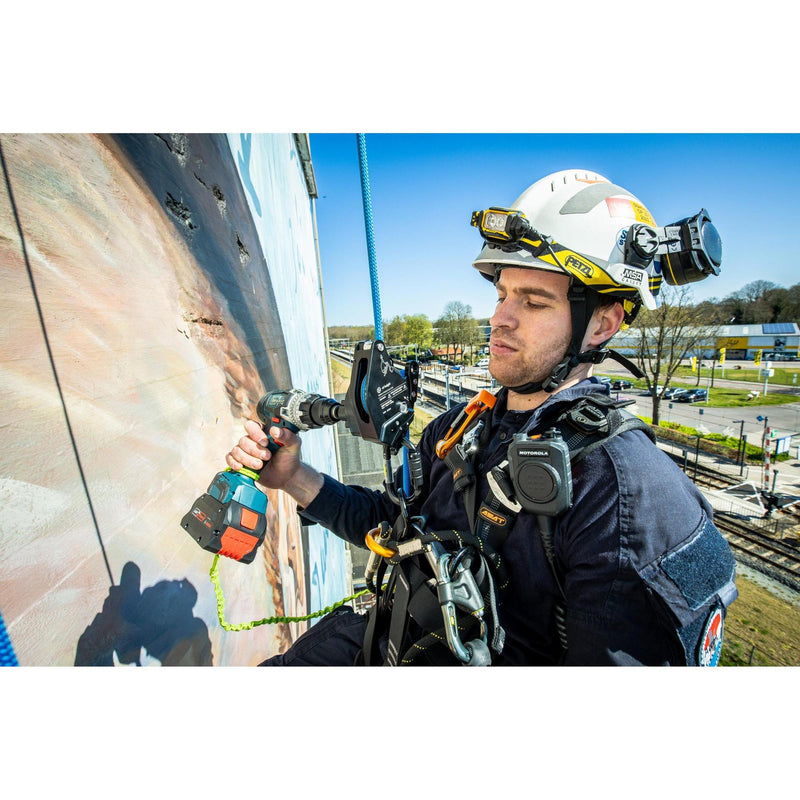

The DW3 operates using a compatible brushless drill with a torque rating above 100 Nm and a battery exceeding 5.0 Ah, delivering efficient and consistent lifting performance. With an 8:1 gearing system, it enables controlled ascent with reduced effort, making it suitable for repetitive lifting tasks and extended use. The device supports a maximum rated load of 200 kg when used with 10.5 mm to 11 mm EN1891A rope.

Versatile Rigging and Work Positioning Use

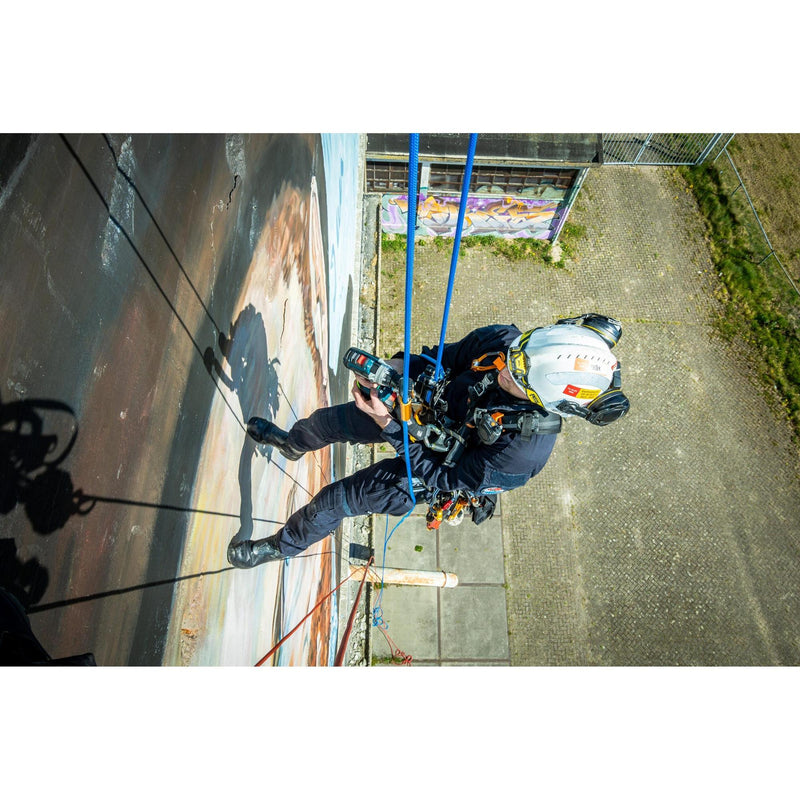

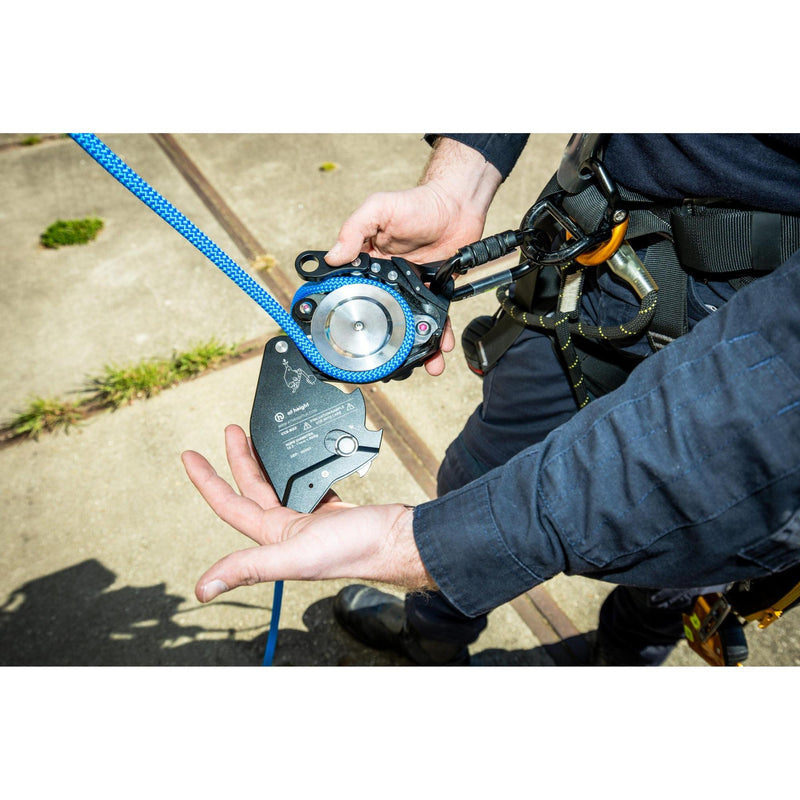

This powered ascender is designed for flexibility across a variety of setups. It can be attached to high anchor points for confined space operations or low anchor points when used with deviation pulleys. It can also be integrated into personal systems by attaching to a harness, allowing users to adapt quickly to changing work requirements in arborist and industrial environments.

Durable Construction and Certified Safety

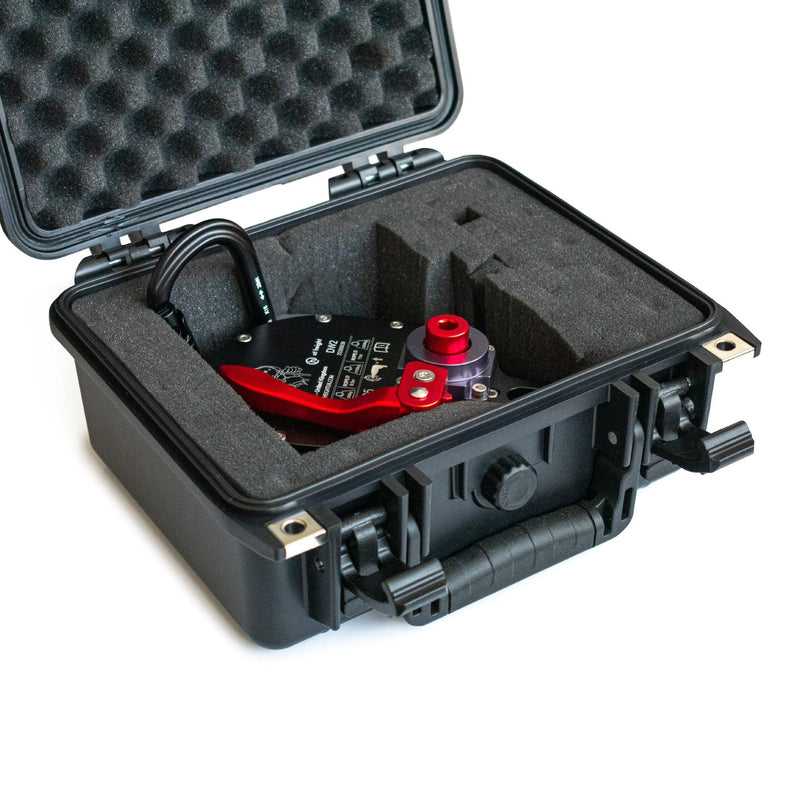

Manufactured from aluminium and stainless steel, the DW3 is built for durability and reliability in tough conditions. It is certified by a Notified Body in accordance with the Machinery Directive 2006/42/EC Annex 4 and meets the Essential Health and Safety Requirements of Annex 1. Each unit is individually serial numbered for traceability and supplied in a hard plastic case with spare hex keys for maintenance.

Key Features

• Drill-powered ascender for lifting and lowering loads and personnel
• Compatible with 10.5 mm to 11 mm EN1891A rope
• Maximum rated load of 200 kg
• Lightweight design at 1.5 kg for easy transport
• 8:1 gearing system for efficient lifting performance
• Constructed from aluminium and stainless steel for durability
• Becket minimum breaking strength of 12 kN
• Compact dimensions of 160 x 120 x 85 mm
• Certified to Machinery Directive 2006/42/EC Annex 4
• Supplied in a hard case with spare hex keys included
• Drill not included
