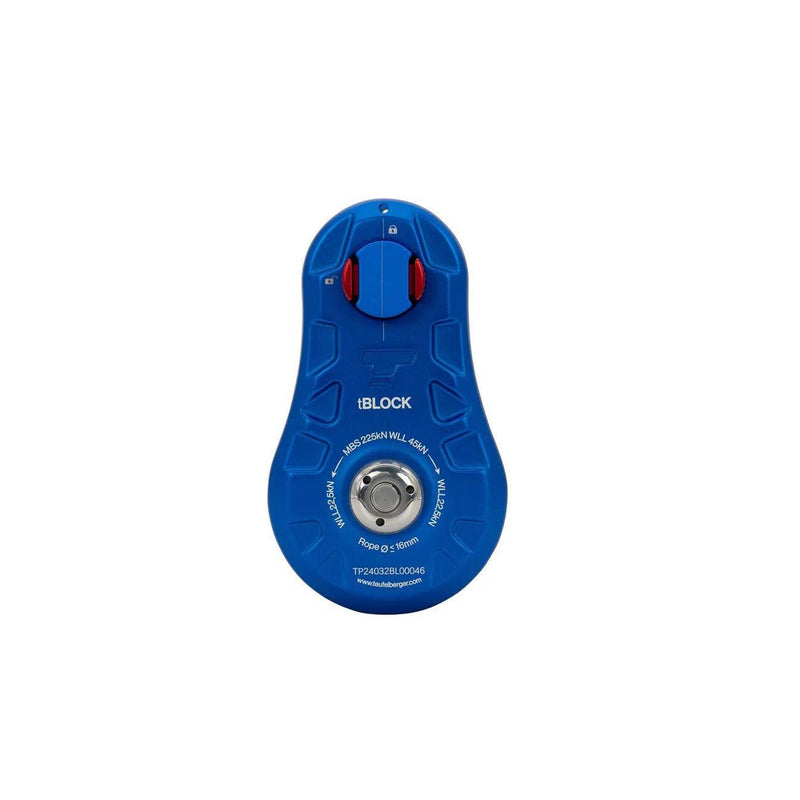

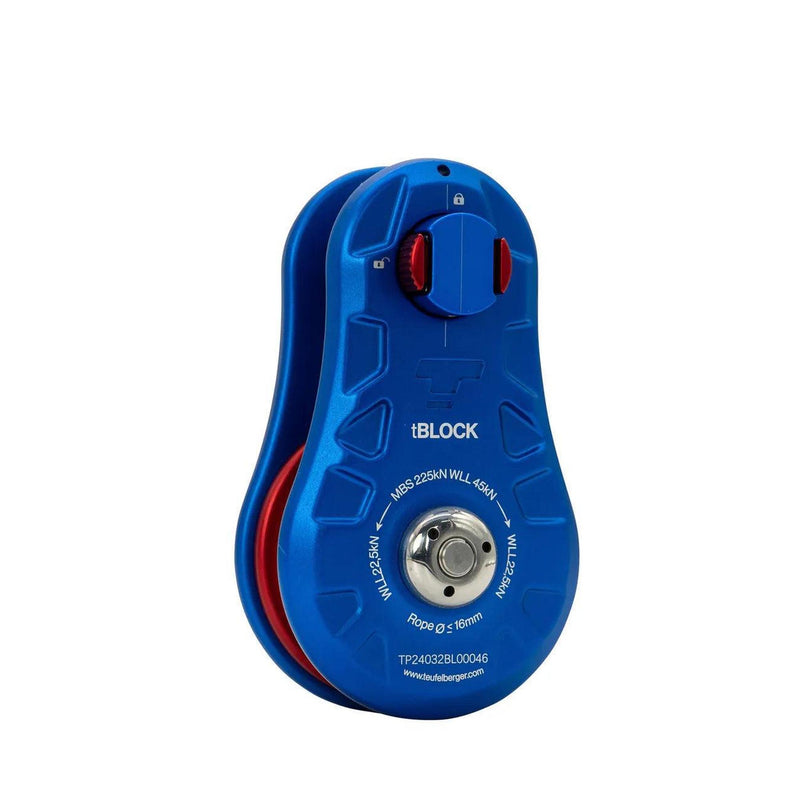

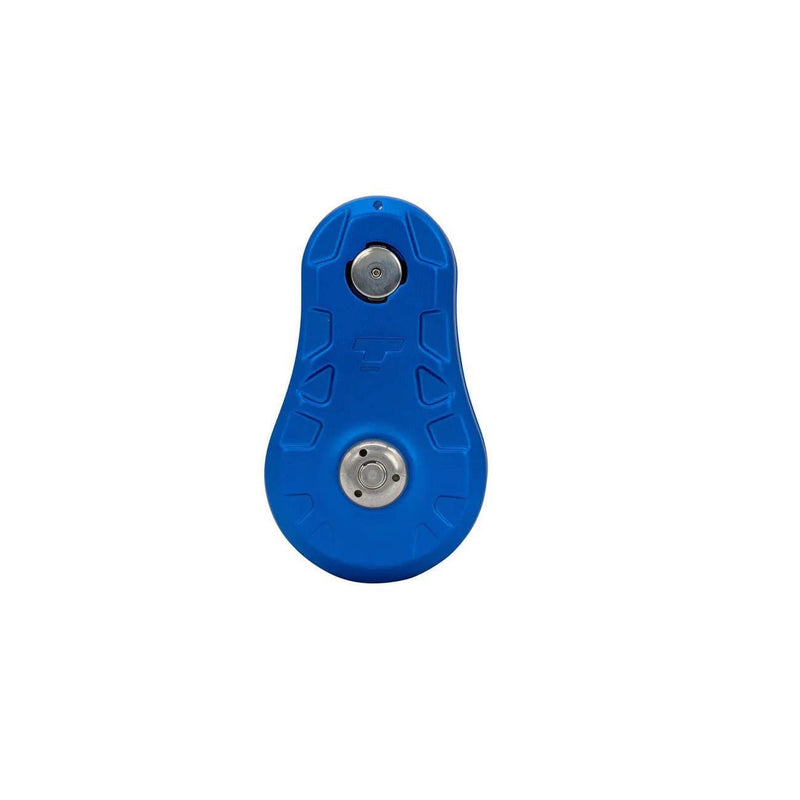

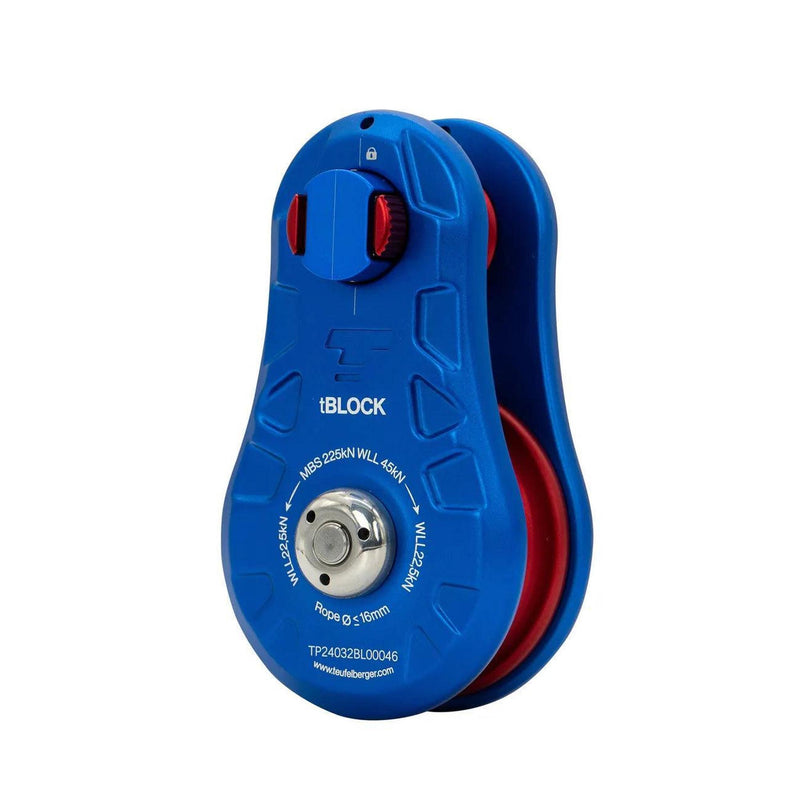

Teufelberger tBLOCK Rigging Pulley

Teufelberger tBLOCK Rigging Pulley

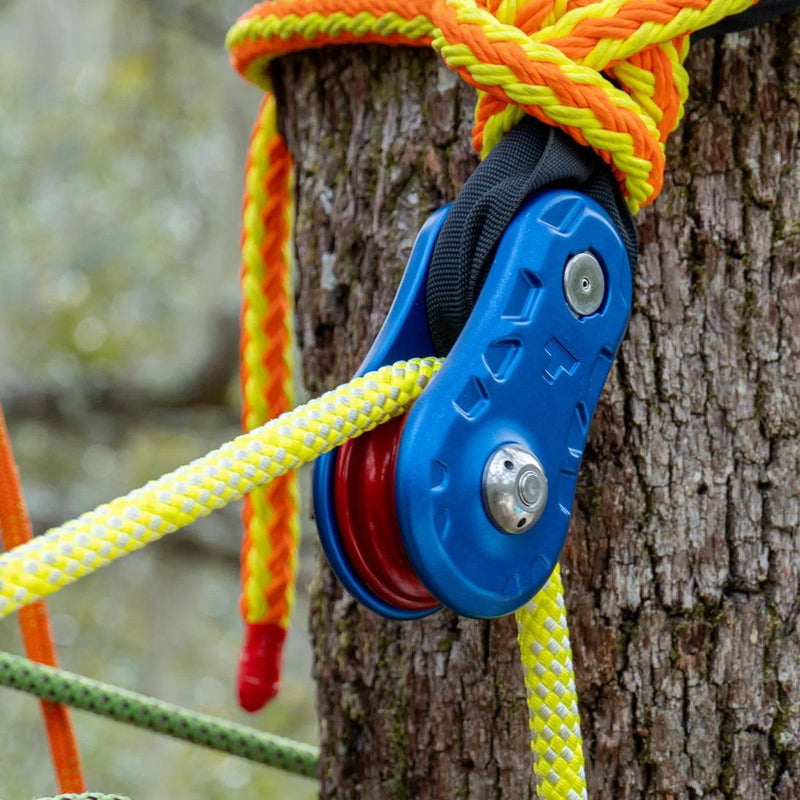

The Teufelberger tBLOCK Rigging Pulley is Teufelberger’s purpose-built solution for lowering loads in arboricultural rigging applications. Developed in collaboration with FTC, this robust pulley combines high load capacity with a lightweight, user-friendly design that makes demanding rigging tasks feel more controlled and efficient. Designed specifically for load handling rather than PPE use, the tBLOCK supports professional tree work where reliability and smooth operation are essential.

Built for Controlled Load Handling

The tBLOCK is engineered for arboricultural rigging, offering a working load limit of 45 kN and an impressive maximum breaking strength of 225 kN. Certified in accordance with the Machinery Directive 2006/42/EC, it is approved for handling loads during rigging operations. Suitable for ropes up to 16 mm in diameter, it provides flexibility across a wide range of lowering scenarios commonly encountered in professional tree care.

Smart Opening System and Durable Construction

Ease of use is central to the tBLOCK design. The movable side plates open and close smoothly using a threaded locking bolt and an integrated spring locking system, allowing quick rope installation while maintaining secure closure during operation. Hot forged aluminium side plates and stainless steel components deliver strength without unnecessary weight, while the distinctive matrix design reflects Teufelberger’s focus on efficiency and durability.

Efficient Performance for Repeated Use

To support consistent performance under repeated loads, the tBLOCK is fitted with a Teflon plain bearing that improves efficiency during continuous use. Despite its high strength ratings, the pulley remains relatively lightweight for its class, weighing 1,605 g. Supplied in a reusable polyester bag, it arrives ready for integration into professional rigging systems where dependable handling and longevity are key.

Key Features

• Rigging pulley designed for arboricultural load handling
• Working load limit of 45 kN
• Maximum breaking strength of 225 kN
• Suitable for ropes up to 16 mm in diameter
• Smart and easy-to-use opening system
• Threaded locking bolt with spring locking mechanism
• Hot forged aluminium side plates
• Aluminium and stainless steel construction
• Teflon plain bearing for efficient continuous use
• Developed in collaboration with FTC
• Certified to Machinery Directive 2006/42/EC
• Lightweight design at 1,605 g
• Supplied in a reusable polyester bag
• Available in blue and red
