ISC UltraLink - Large with Pulley Wheel

ISC UltraLink - Large with Pulley Wheel

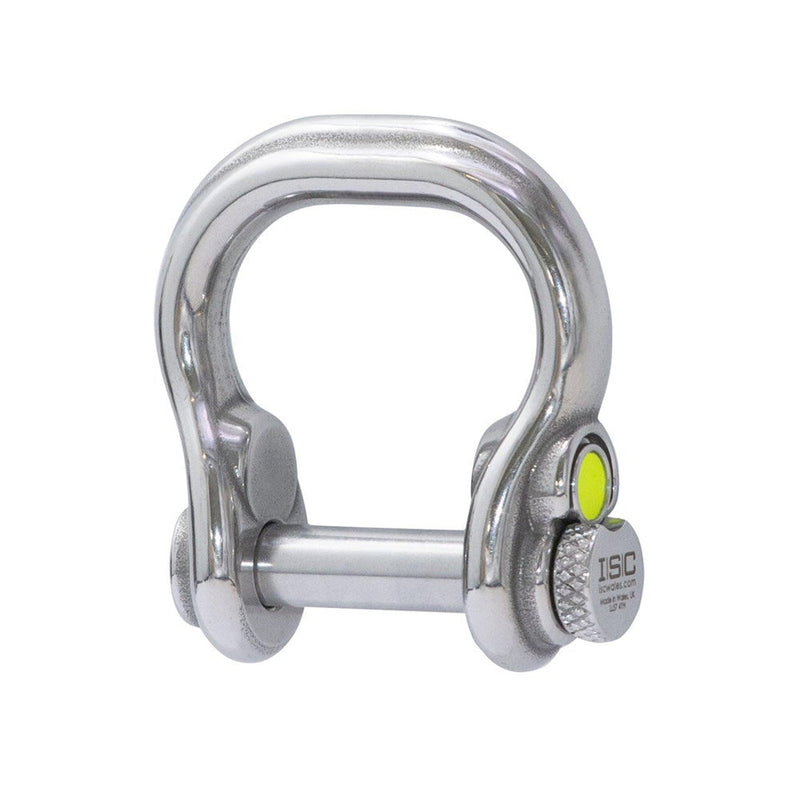

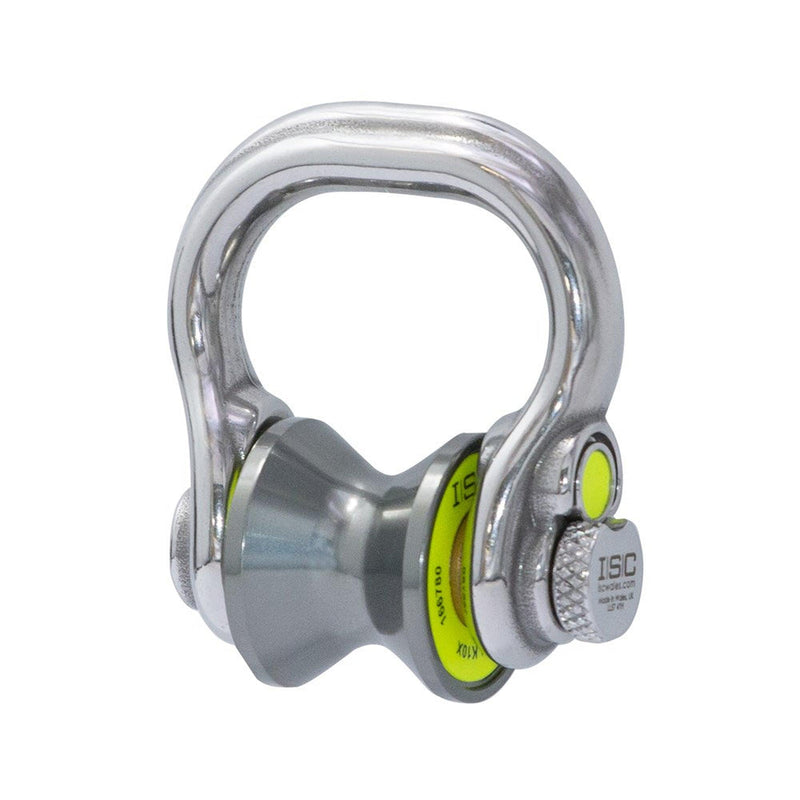

The ISC UltraLink - Large with Pulley Wheel is a next-generation link designed to improve rope connection and redirection efficiency. Built for safety and versatility, it incorporates a removable pulley wheel and a secure locking system that enables quick operation without tools.

SafeLock tool-free locking system

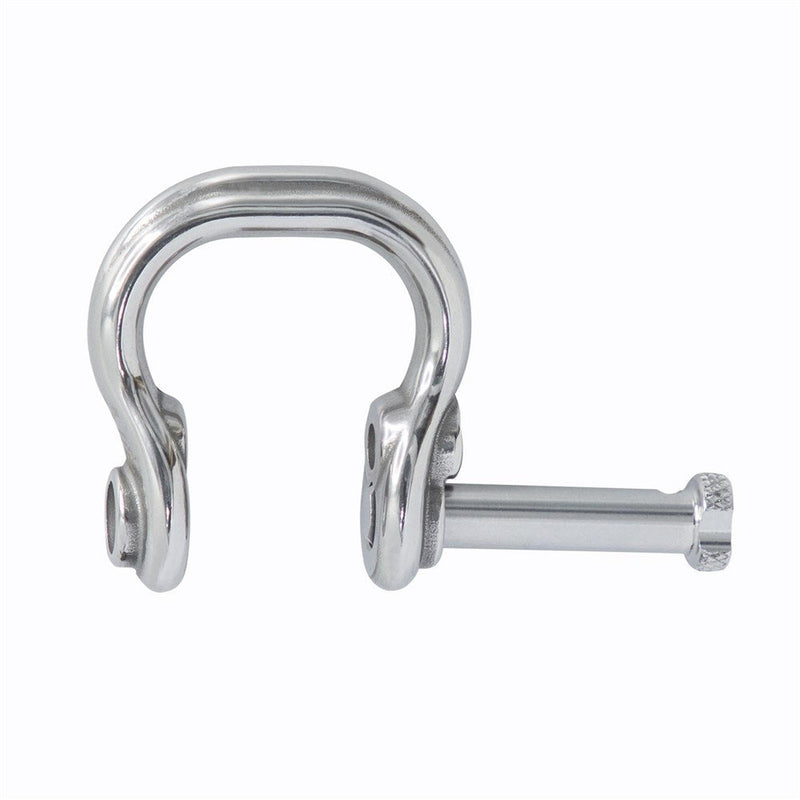

The UltraLink features ISC’s SafeLock mechanism, allowing a secured locked axle to be released without tools. Opening the mechanism requires three deliberate actions, which can be performed one-handed using the thumb and forefinger. The specially shaped body helps guard the SafeLock button, reducing the likelihood of accidental activation.

High strength performance with pulley fitted

The UltraLink offers a minor axis minimum breaking strength of 25 kN and a major axis minimum breaking strength of 30 kN, increasing to 40 kN when used with the pulley wheel. The bowed frame profile promotes correct loading, particularly in minor axis orientation, enhancing operational reliability.

Durable materials and visible sheave

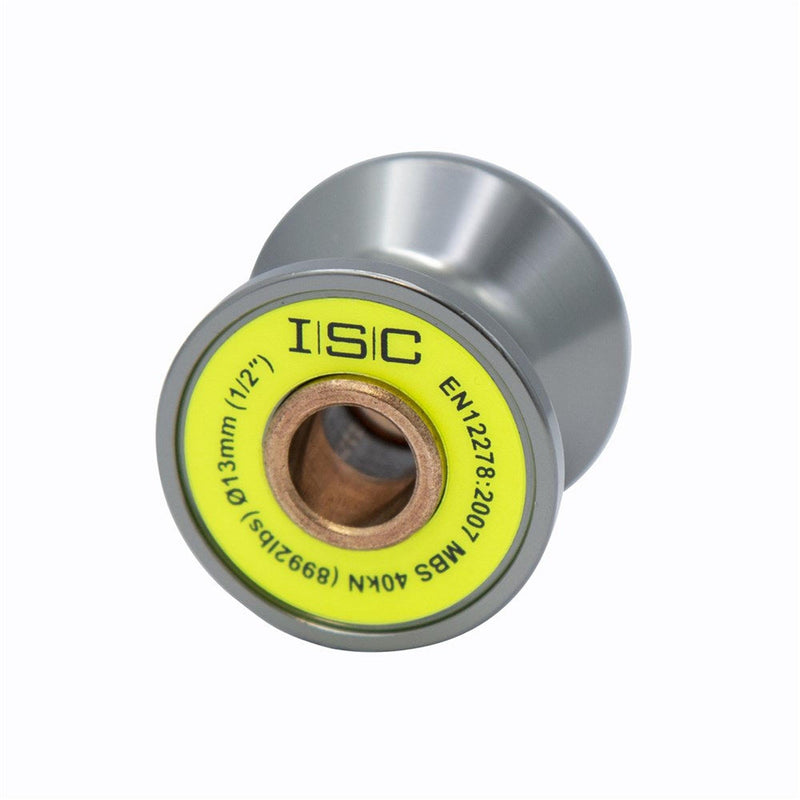

Manufactured from corrosion-resistant stainless steel, the UltraLink is fitted with a lightweight aluminium sheave. The high-visibility wheel assists in locating the unit if dropped. The polished finish supports durability and a clean appearance, with serial numbering provided as standard.

Technical Specifications

• Minimum breaking strength 40 kN (8992 lbf) with pulley
• Wheel material aluminium
• Corrosion-resistant stainless steel body
• Polished finish
• Weight 182 g (6.4 oz)
• Height 57 mm, width 68 mm, thickness 32 mm
• Serial numbering as standard
• Approved to PPE Regulation (EU) 2016/425 including EN12278:2007
