ART RopeGuide 2010 Cocoon 5

ART RopeGuide 2010 Cocoon 5

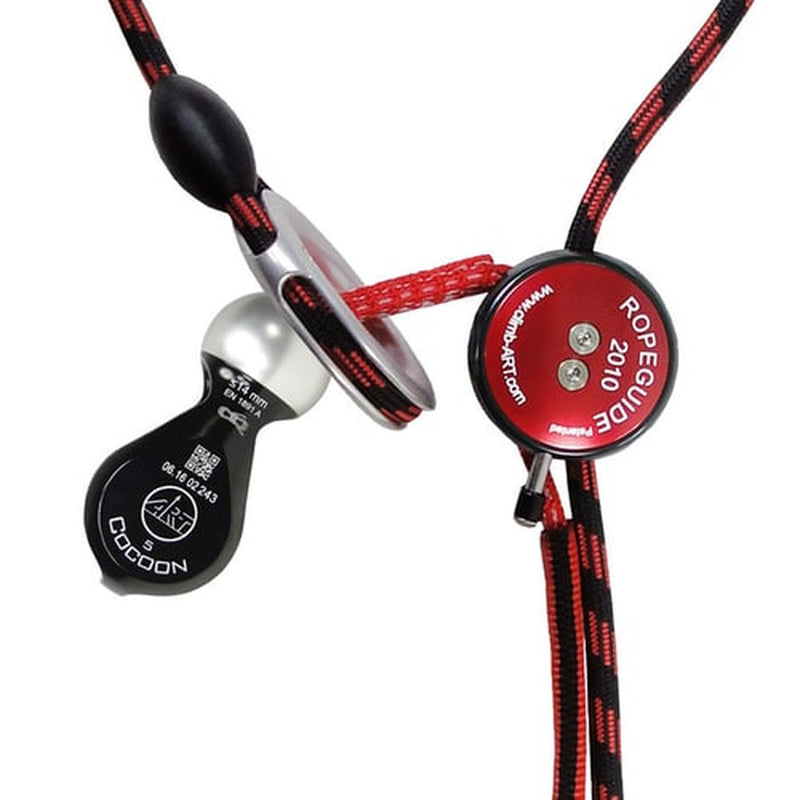

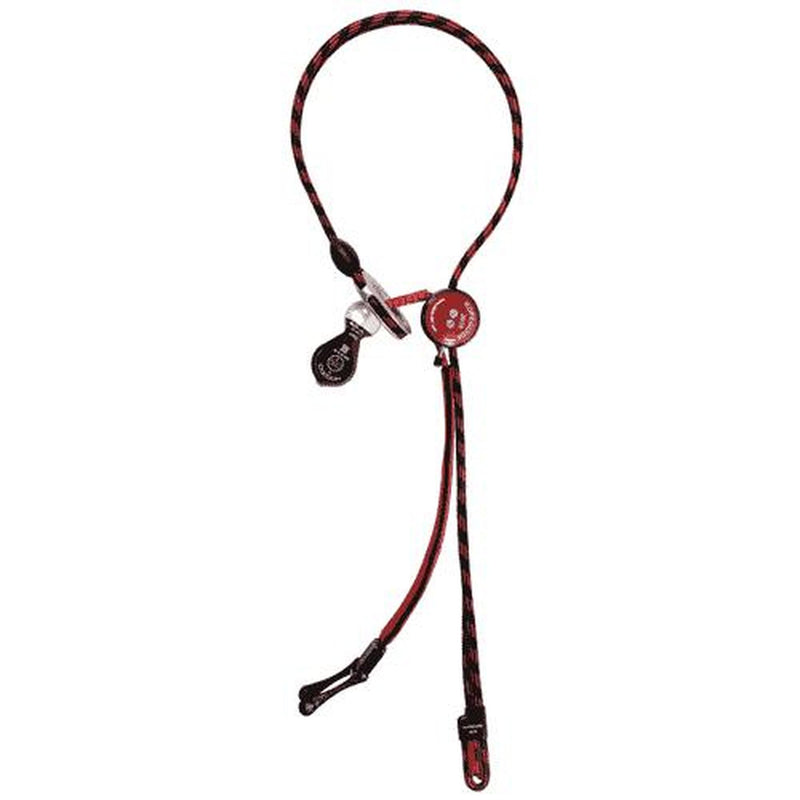

The ART RopeGuide 2010 Cocoon 5 is a patented mobile anchor system that combines lightweight construction with high strength and advanced safety features. Designed around the unique TunnelRing concept, it delivers reduced weight while maintaining impressive resistance and load capacity. Supplied with a retrieval ball, it supports efficient installation and recovery in tree climbing applications.

Innovative TunnelRing technology for enhanced safety

The TunnelRing shares approximately half the weight of a solid ring while achieving comparable resistance and increased safety. The internal rope is protected by the ring, and the rope and ring work together to raise overall breaking load. The runner leading to the pulley crosses both the ring and the loop, effectively doubling security within the system.

Integrated Cocoon and ZipAbsorber performance

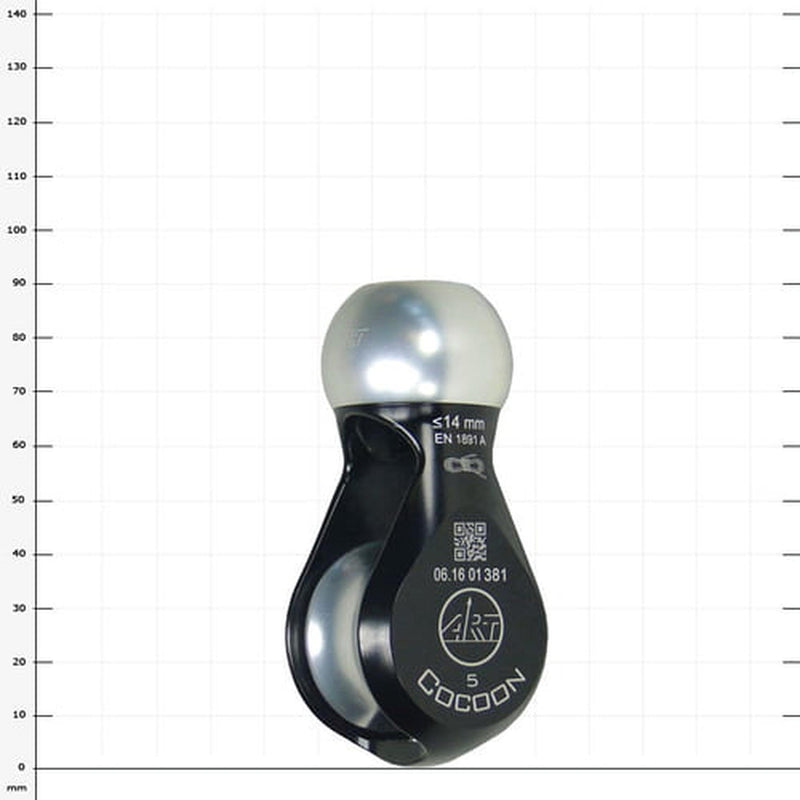

The integrated Cocoon ensures exceptionally smooth rope feed, while the built-in ZipAbsorber 1 acts as a shock absorber within the system. The device features continuously adjustable length and automatic blocking without slippage. Thanks to the parallel sewn double rope construction, rolling when choked is eliminated, improving stability during trunk choking.

Efficient installation and retrieval in the canopy

The RopeGuide 2010 Cocoon 5 allows easy lifting of the climbing system after throwing the ring end and provides optimal choking mode around the trunk. The integrated fender supports optimised ring retrieval and easy device release. Installation and retrieval are further simplified through the Trapeze 5 system.

Key Features

• Patented mobile anchor certified to EN 795 B
• Unique TunnelRing for reduced weight and increased safety
• Integrated ZipAbsorber 1 shock absorber
• Super smooth rope feed via Cocoon system
• Continuously adjustable length
• Automatic blocking without slippage
• Parallel sewn 8 mm polyester/Dyneema rope
• Optimised choking mode with no rolling
• Compatible with DoubleSnapper 3
• Service life 7 years metal parts, 5 years textile parts
• Breaking strength 24 kN
