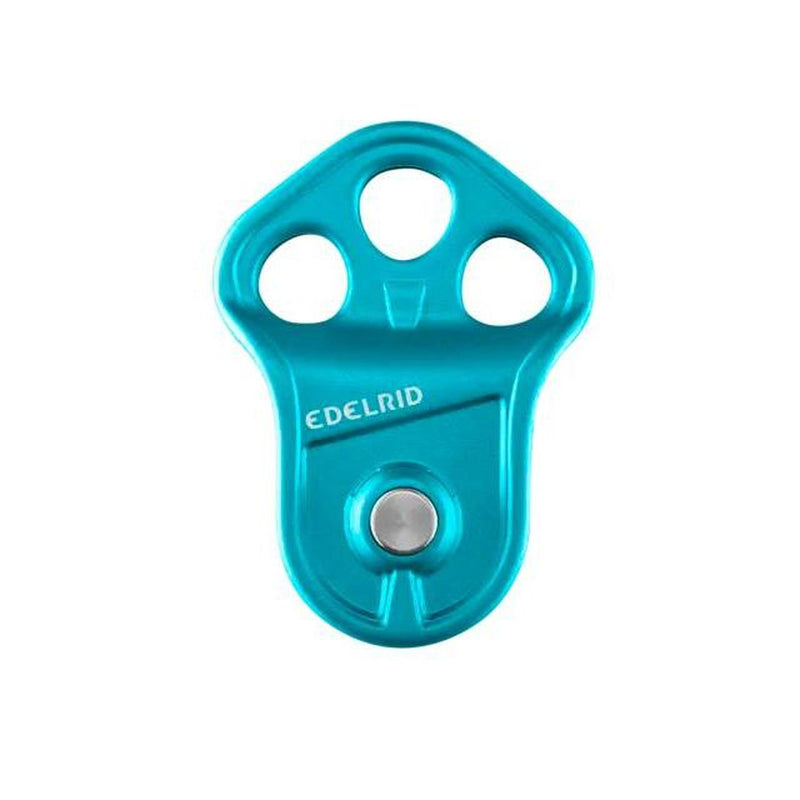

Edelrid Puck Pulley

Edelrid Puck Pulley

The Edelrid Puck Pulley is a specialist pulley developed for professional tree care and advanced rigging applications where compact size, high efficiency, and multiple connection options are required. Its design allows it to function either within friction hitch systems or as a rigging plate with an integrated pulley, supporting complex setups that demand clear organisation and smooth rope handling. The rounded profile is intended to be gentle on ropes during repeated use.

Versatile pulley for tree care and rigging systems

The Puck is designed specifically for tree care use and supports a wide range of applications, including auxiliary cable cars, block and tackle systems, and structured rigging configurations. Its layout allows multiple anchor points to be used when required, making it suitable for organised system building where flexibility and clarity are important. The pulley is approved for rope diameters below 13 mm, supporting compatibility with commonly used arborist ropes.

High-efficiency performance with rope-friendly design

A ball-bearing-mounted pulley wheel delivers a high efficiency rating of 94 percent, supporting smooth rope travel and reduced friction under load. The rounded edges of the pulley body are designed to be particularly gentle on ropes, helping minimise wear during frequent movement and redirection. This makes the Puck well suited to applications involving continuous rope motion within tree care systems.

Robust construction and certified strength

The pulley is constructed from aluminium, with an anodised aluminium roller that supports durability and consistent performance. With a working load limit of 800 kg and a minimum breaking strength of 40 kN, the Puck provides strong performance margins for professional rigging tasks. Measuring 98 mm in height and 68 mm in width, it remains compact while offering substantial strength. The pulley is certified to EN 12278, confirming suitability for recognised pulley applications.

Key Features

• Special pulley developed for professional tree care use
• Can be used in friction hitch systems or as a rigging plate with pulley
• Compact and lightweight aluminium construction
• Ball-bearing-mounted pulley for high efficiency
• 94 percent efficiency for smooth rope travel
• Rounded edges designed to be gentle on ropes
• Anodised aluminium roller for durability
• Approved for rope diameters below 13 mm
• Working load limit of 800 kg with 40 kN breaking strength
• Certified to EN 12278 standard
