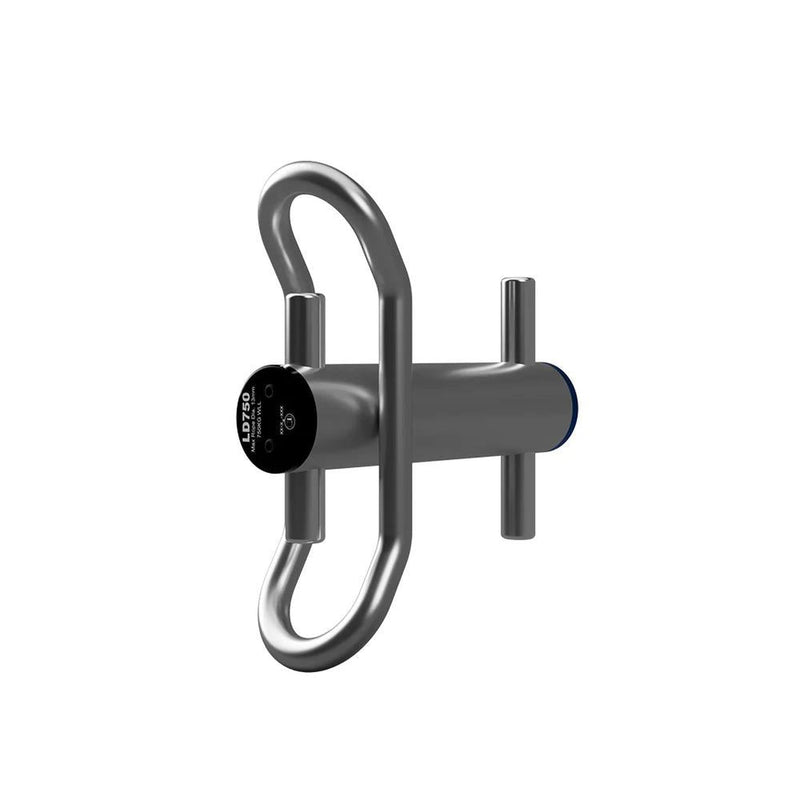

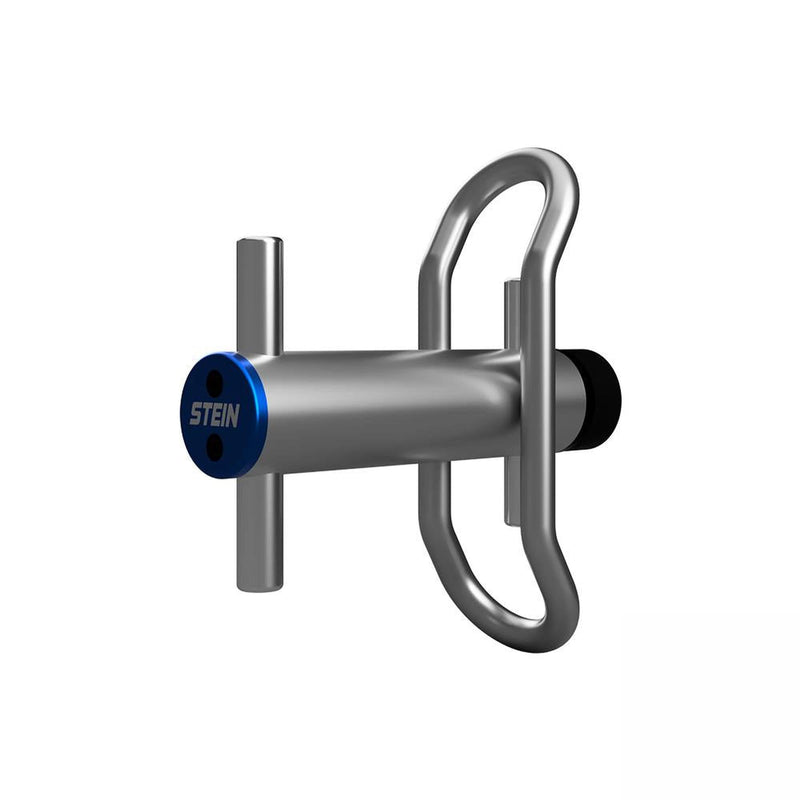

Stein LD750 Floating Friction Device

Stein LD750 Floating Friction Device

The Stein LD750 Floating Friction Device is a rope friction device designed for controlled lowering of timber or objects from height during arborist rigging operations. Its straightforward design supports quick setup on site and allows the device to be mounted in either orientation, giving operators flexibility when configuring rigging systems. This makes it suitable for varied site conditions where efficient, predictable lowering is required.

Flexible mounting for efficient rigging setup

The LD750 Floating Friction Device can be mounted in either orientation, allowing users to adapt installation to suit the working position or anchor point. This flexibility supports faster setup and adjustment during rigging tasks, helping operators maintain momentum on site. The simple layout keeps operation clear and accessible, supporting controlled rope handling throughout the lowering process.

Controlled lowering with guided rope management

Replaceable fairleads guide the rope during use, supporting smooth friction control while helping manage rope direction. These fairleads also allow tie-off when required and can act as redirects, enabling operators to work from a safer distance with improved control. Designed to accept ropes up to 13 mm in diameter, the device supports a working load limit of 750 kg for controlled lowering tasks.

Compatibility and surface protection during use

The LD750 Floating Friction Device is compatible with STEIN Hauler Kits, allowing loads to be raised before lowering or supporting pre-tensioning within the system. A removable protection rubber helps protect mounting surfaces during operation and can be replaced when worn. With a device weight of 1.925 kg, it balances manageable handling with robust performance for regular professional use.

Key Features

• Rope friction device designed for controlled lowering tasks
• Mounts in either orientation for flexible on-site setup
• Compatible with STEIN Hauler Kits for lifting or pre-tensioning
• Replaceable fairleads supporting rope guidance and redirection
• Supports ropes up to 13 mm in diameter
• Working load limit of 750 kg
• Removable protection rubber helping protect mounting surfaces
• Device weight: 1.925 kg
• Completed with a plated finish
