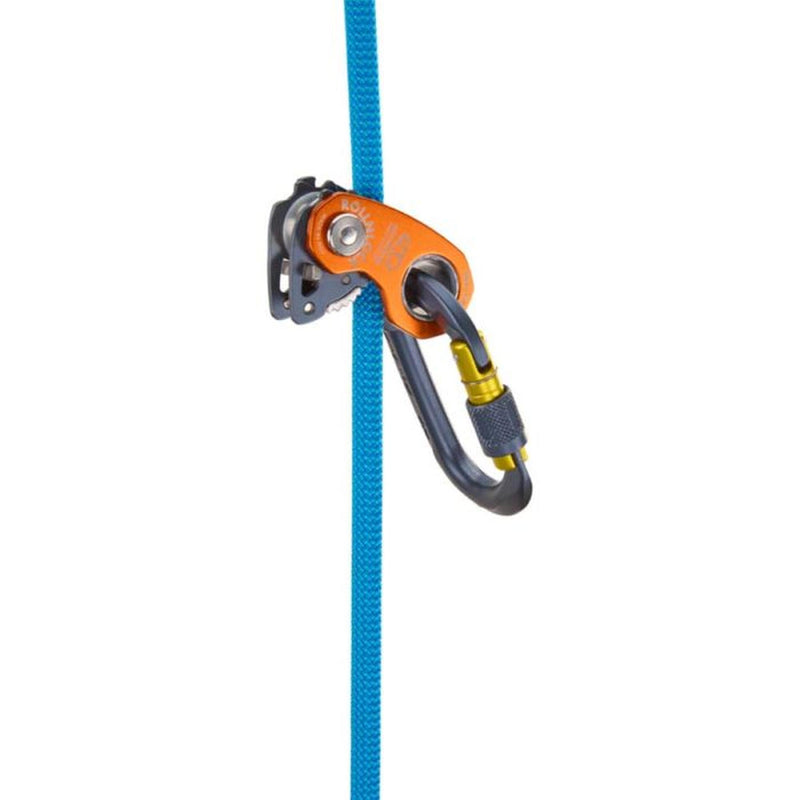

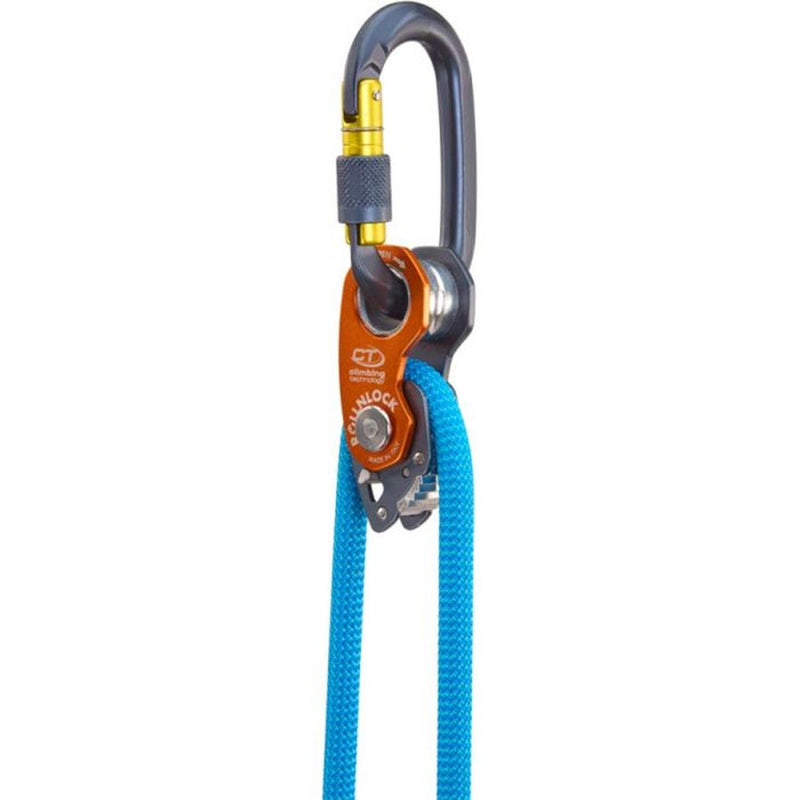

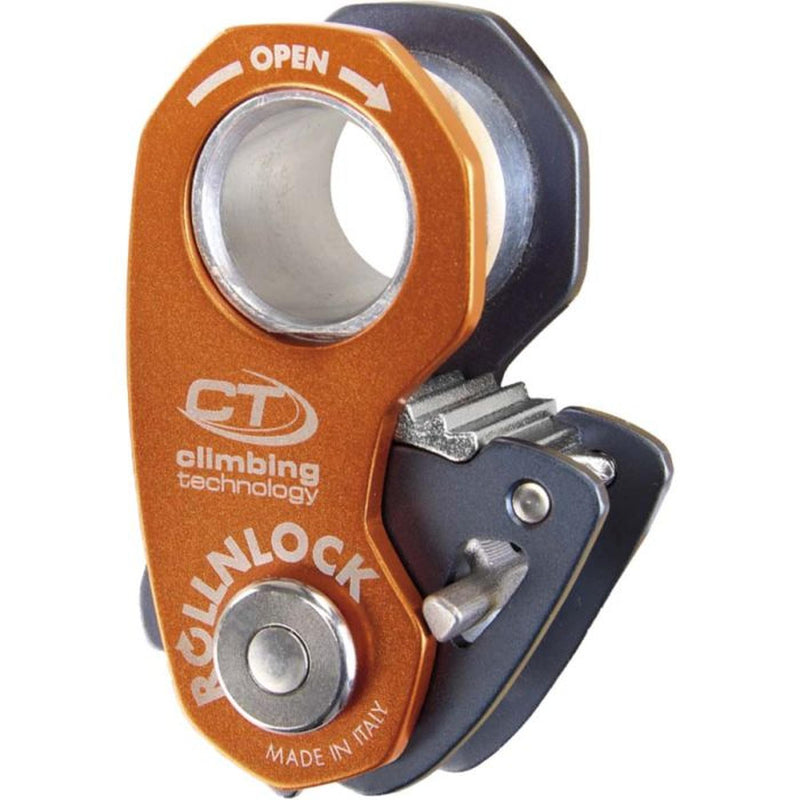

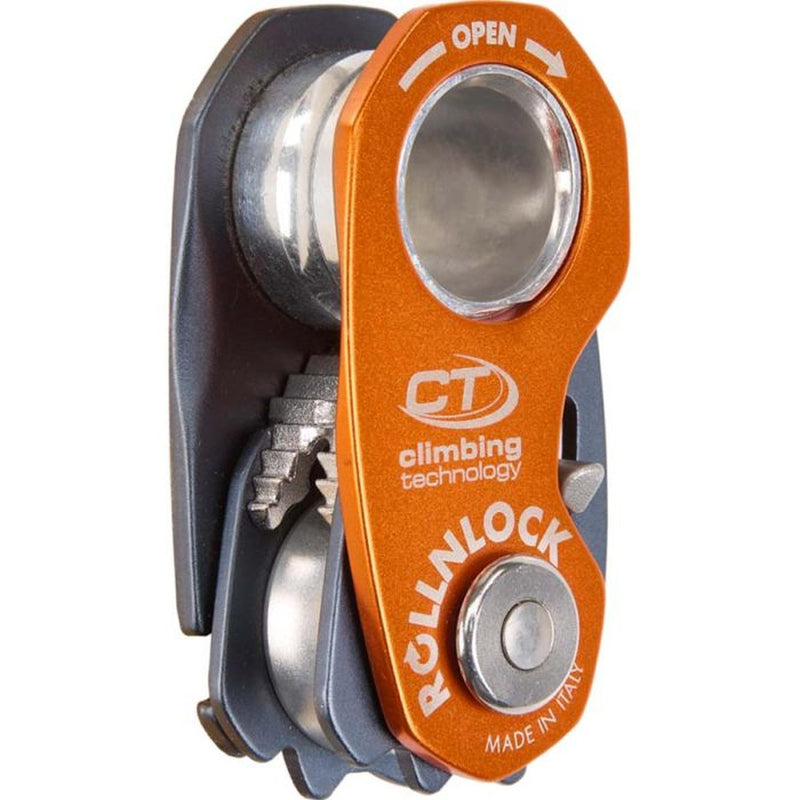

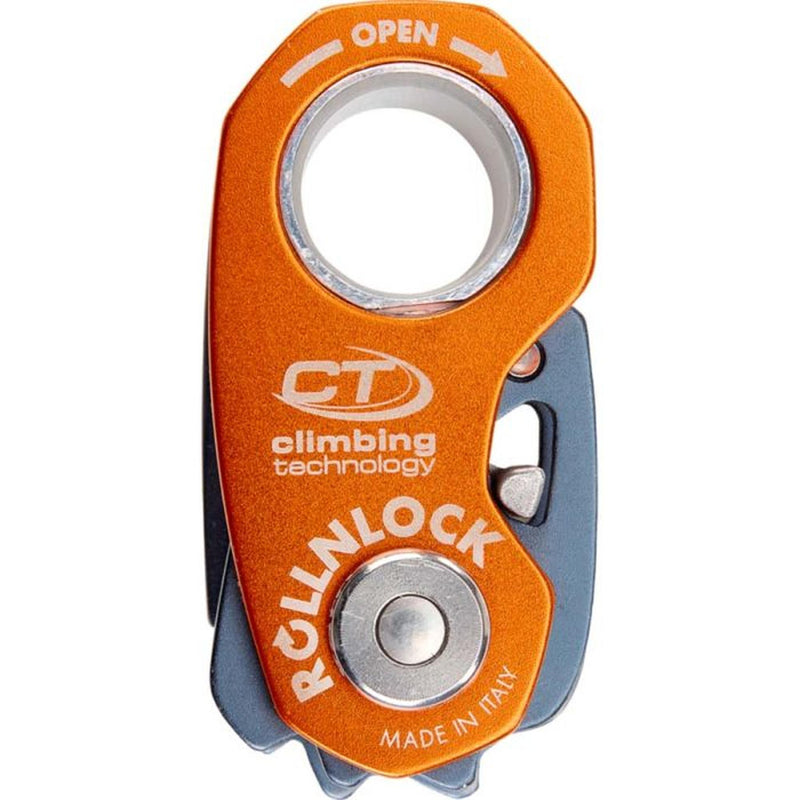

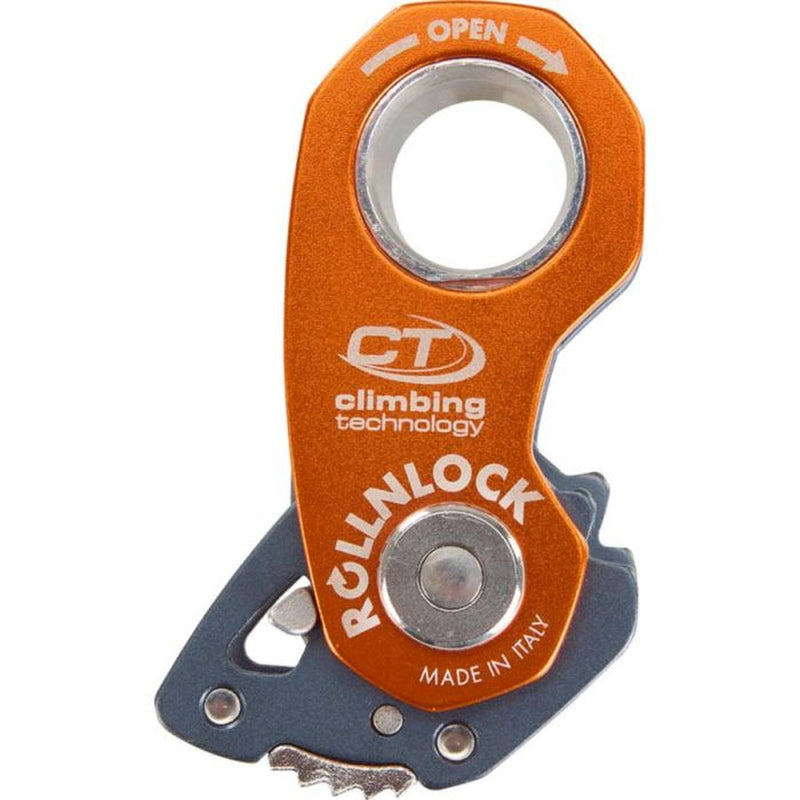

Climbing Technology Roll N Lock Multi-Function Device

Climbing Technology Roll N Lock Multi-Function Device

The Climbing Technology Roll N Lock Multi-Function Device is an ultra-light and compact solution designed for mountaineering, rope access, rescue, and self-rescue applications. Built to combine multiple functions in a single intuitive unit, it helps reduce equipment load while maintaining flexibility in demanding rope scenarios. Its compact size and low weight make it practical to carry on the harness at all times, ready for use whenever required.

Three operating modes for versatile rope work

The Roll N Lock offers three distinct modes of operation, allowing it to adapt to a wide range of situations. It can be used as a rope ascender in accordance with EN 567 and EN 12841-B standards, supporting efficient upward movement. By locking the cam, it can also function as a simple pulley for lifting or transferring loads in line with EN 12278 requirements. In progress-capture hauling pulley mode, it enables lifting, hauling system creation, and rescue or self-rescue operations.

Controlled rope movement and progress capture

When used in pulley mode, the rope is free to run in both directions, allowing smooth lifting or redirection. In hauling pulley mode, the rope travels in one direction only and locks in the opposite direction, providing secure progress capture during lifting or rescue operations. This controlled behaviour supports predictable performance when managing loads or assisting a person in emergency situations.

Intuitive handling in challenging conditions

The redesigned body and contrasting side plate colours make mode selection clearer and more intuitive during use. Switching between modes is straightforward and can be done while wearing gloves or working in difficult conditions. The device’s compact form and easy handling support quick deployment, making it a reliable companion for professionals who require adaptable equipment without added complexity.

Key Features

• Ultra-light multi-function rope device
• Three operating modes for versatile use
• Ascender mode compliant with EN 567 and EN 12841-B
• Pulley mode compliant with EN 12278
• Progress-capture hauling pulley for rescue and self-rescue
• Allows controlled rope travel depending on selected mode
• Intuitive mode switching even when wearing gloves
• Compact size suitable for permanent harness carry
